I hope, this thing is ready (after many iterations and small improvements and also multiple new uploads to JLCPCB)…

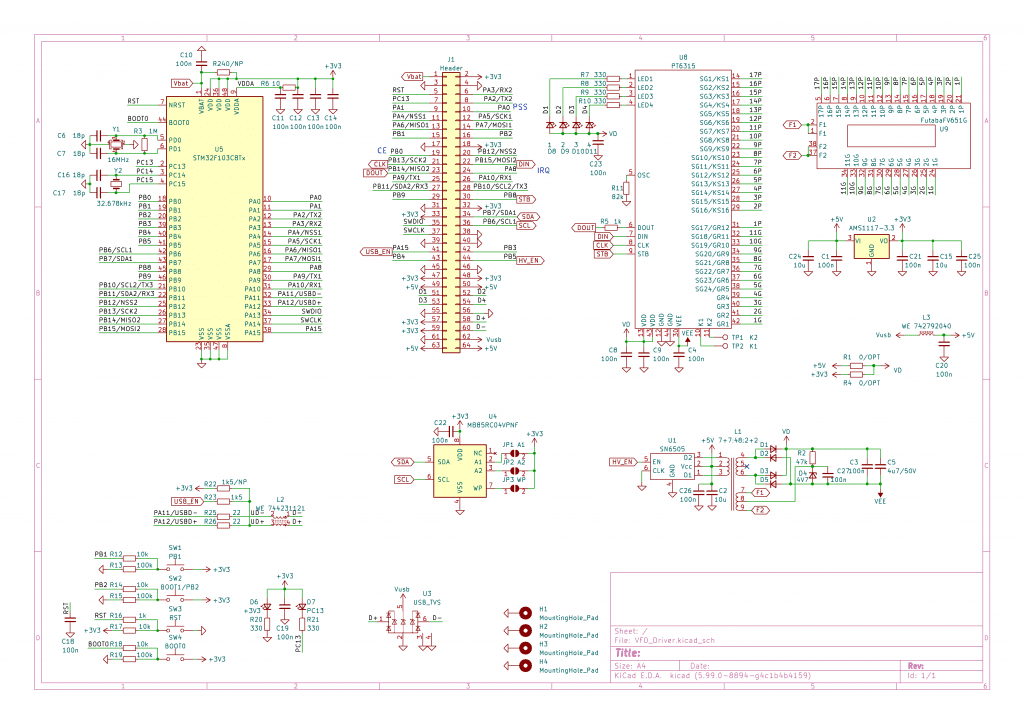

- Designed for FV651G display
- Used PT6315 driver
- SN6505 push-pull driver to generate 30Vdc anode voltage and 2.7Vac cathode voltage
- Some LEDs and buttons
- 3V3 LDO
- FRAM
- Oscillators
- USB with filter
- Header for 64 pins
- Place for GPS board, nRF24L01+ and RTC unit D3231

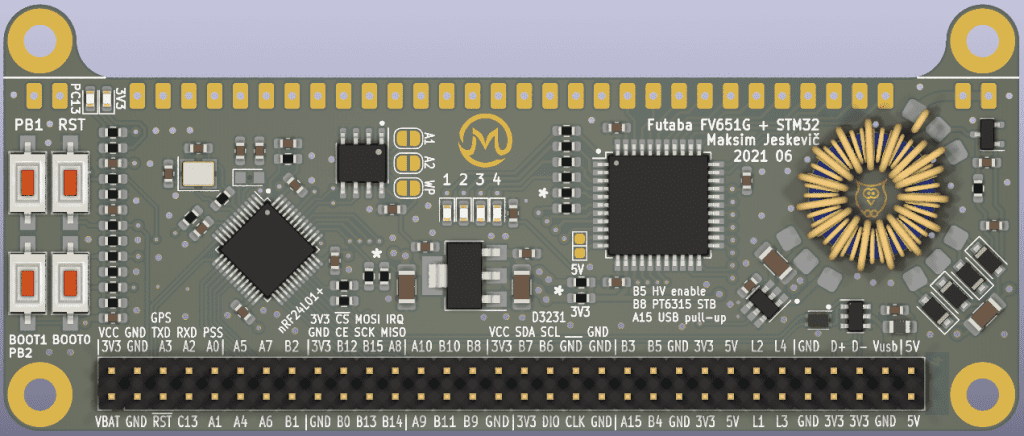

And everything packed in 42x100mm 4-layer PCB
Some small PCBs to save on shipping, and ready to go.
