PCBs are here!

Posted byMJ Leave a comment on PCBs are here!

Here it is, already with all components:

For detailed photos from all PCBs and some from old good Fluke, just:

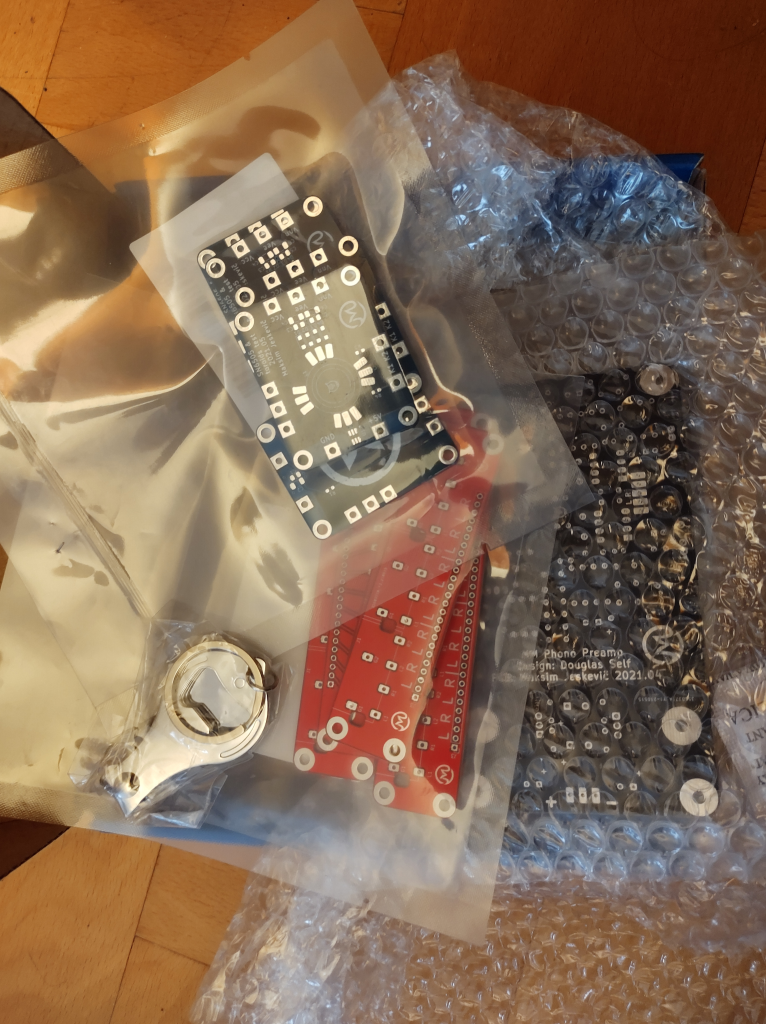

All fresh PCBs + some small gift from JLCPCB

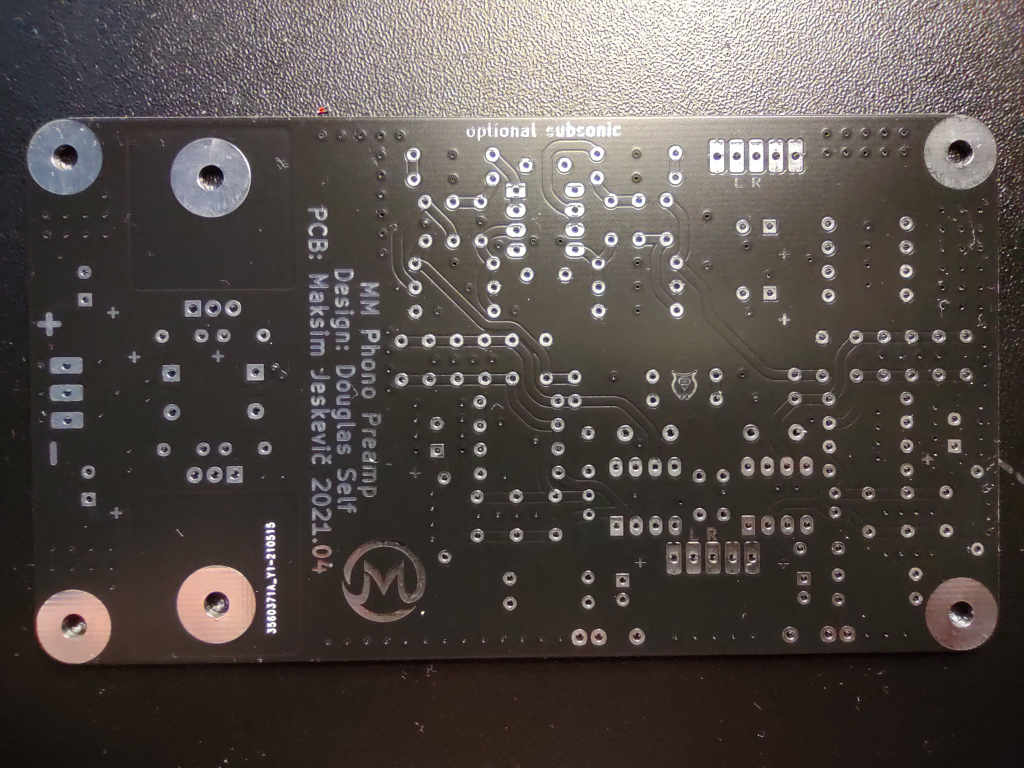

Black one looks really gorgeous. And JLC number just placed where I wanted.

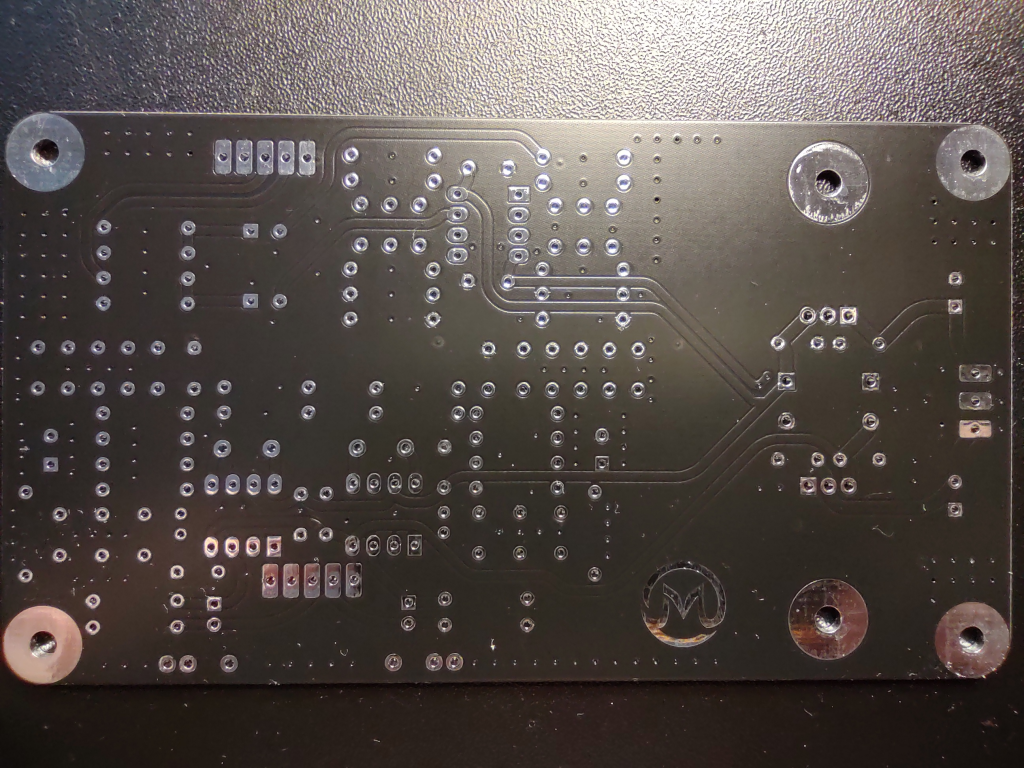

Bottom side is pretty too.

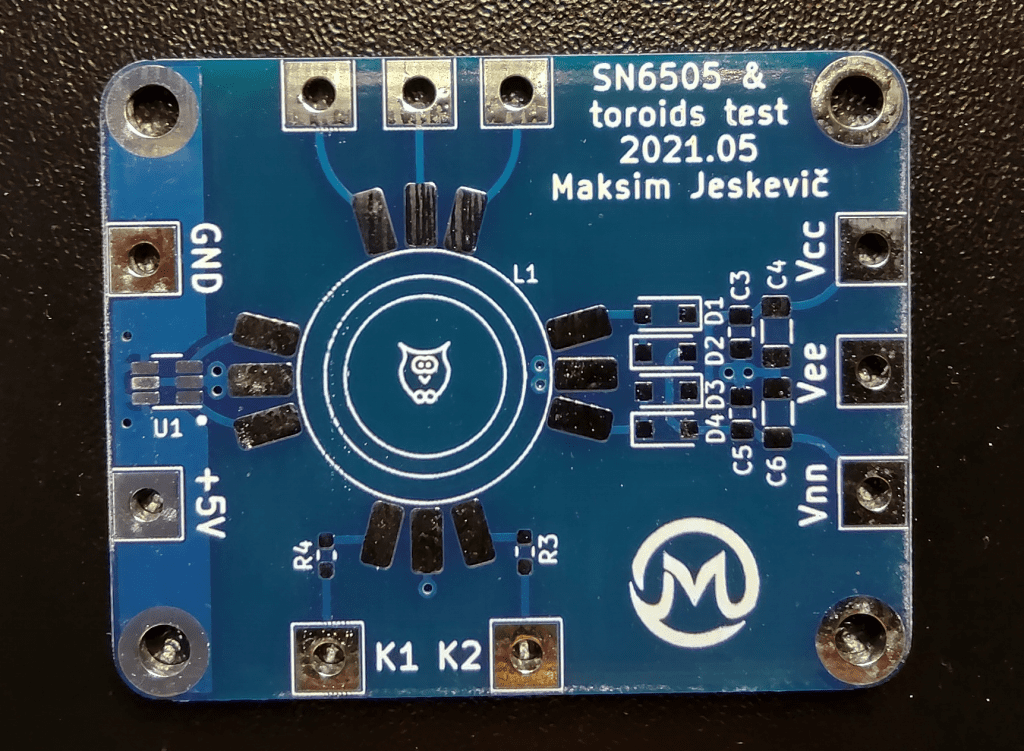

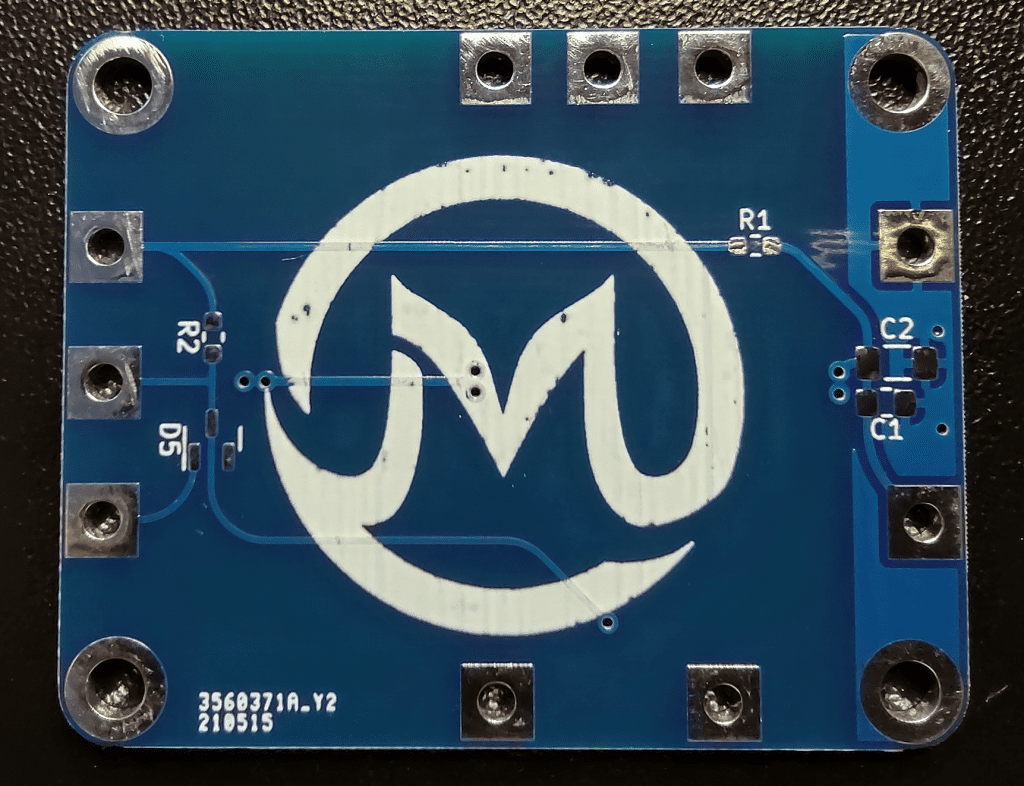

Blue one looks also amazing.

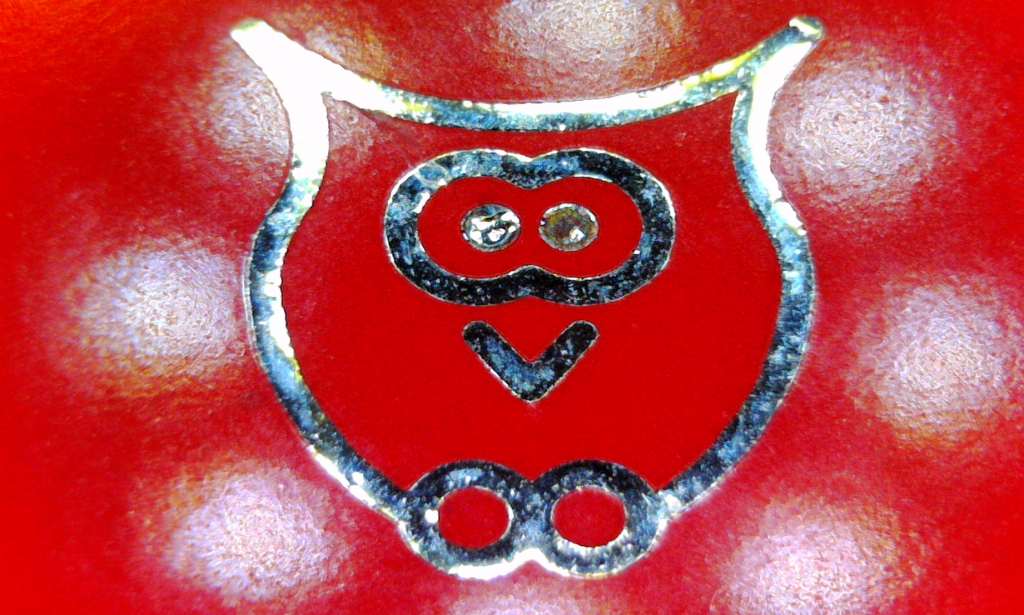

Big silkscreen logos are not so good idea. But small looks really wonderful!

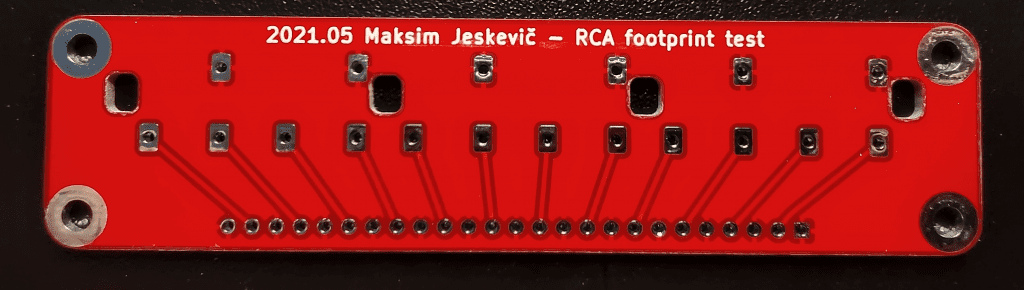

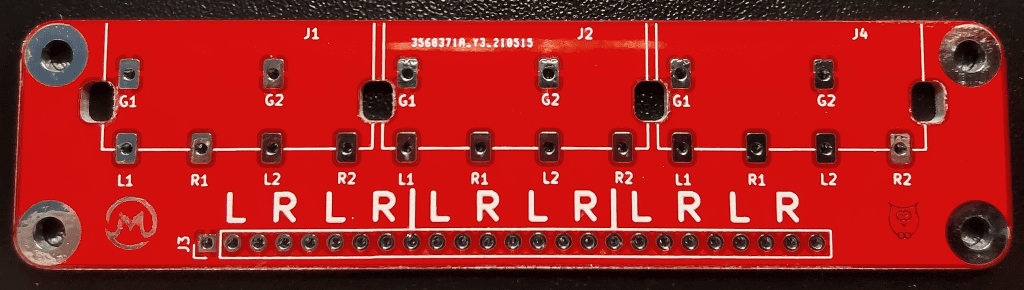

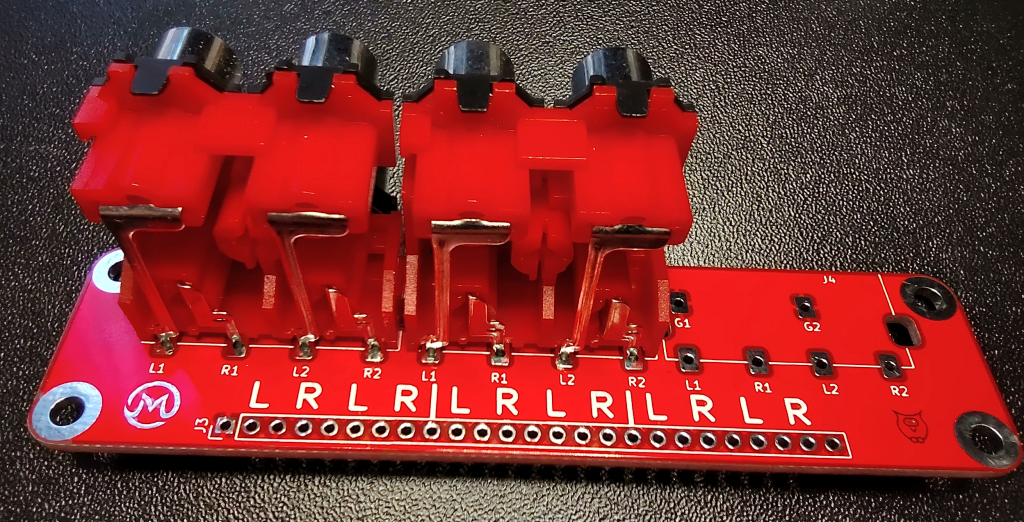

Red one amazing too.
Very well done, JLCPCB.
Looks great.

I’m very glad, what I’ve ordered this PCBs to test the footprints… Some corrections should be made.

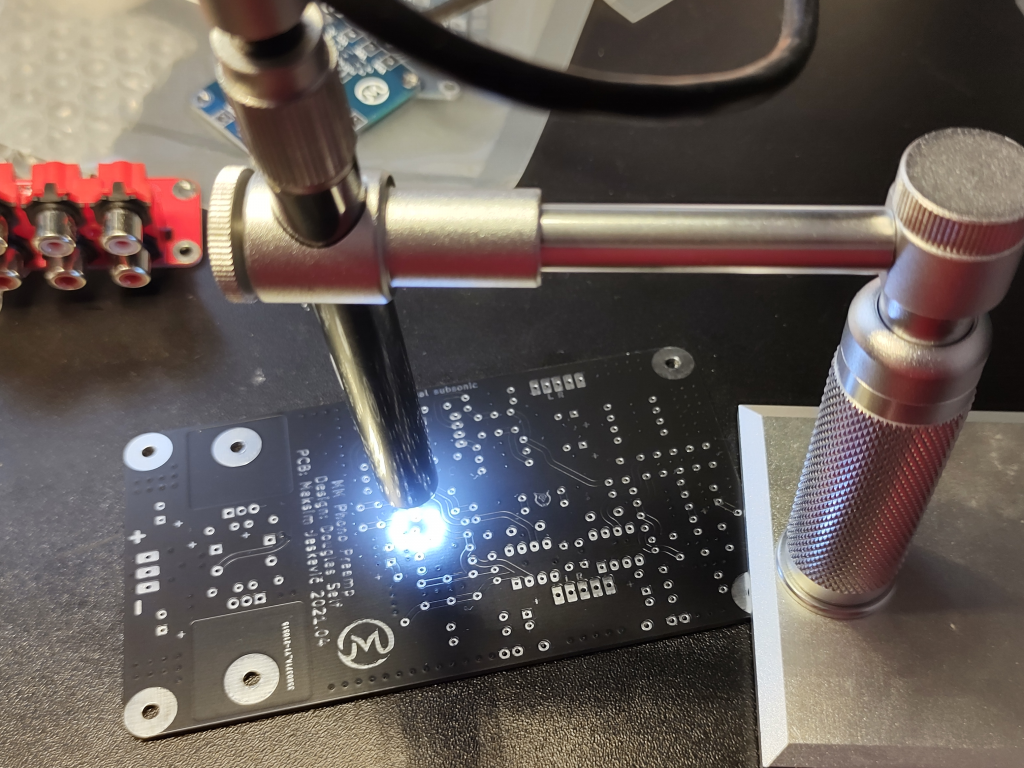

Let’s put this under microscope!

Some details are here:

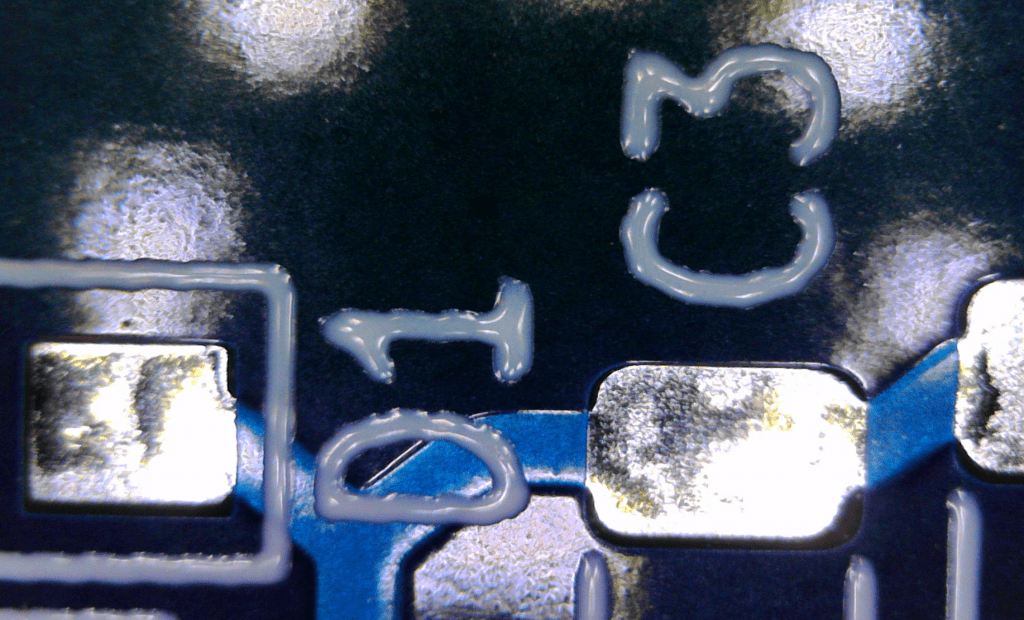

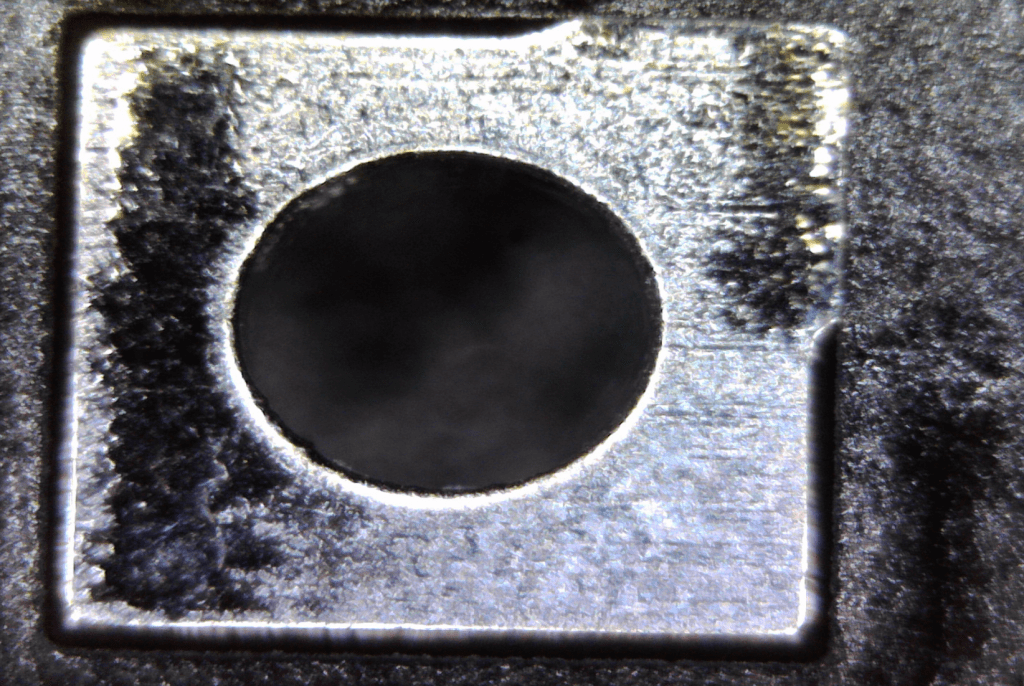

Mask is so close and nice
Great quality
Very small detail, and still well done!

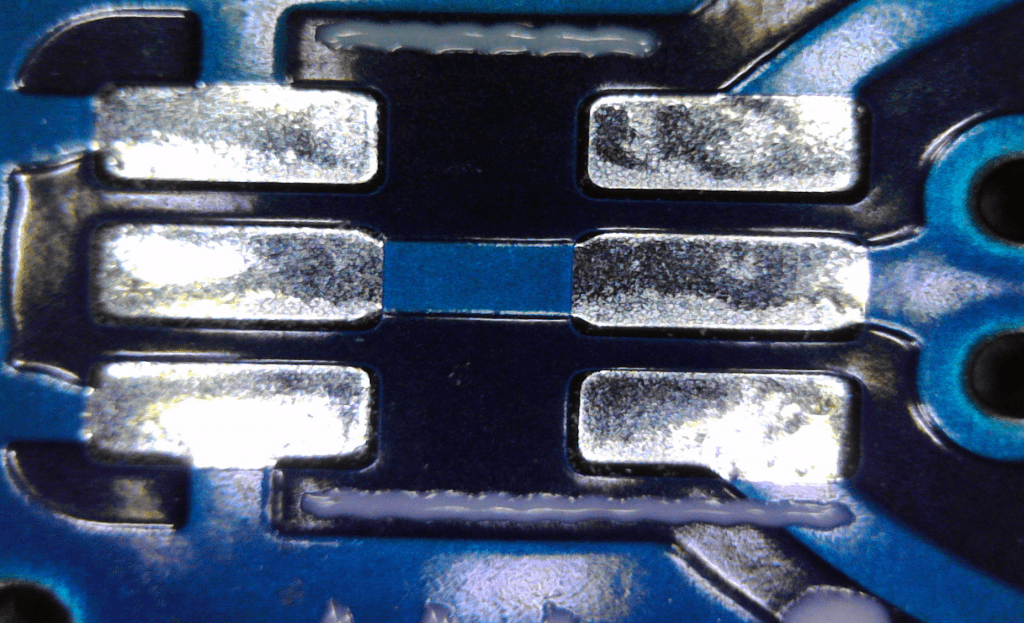

SOT23-6 package. Amazing!
Look at this 1mm text!

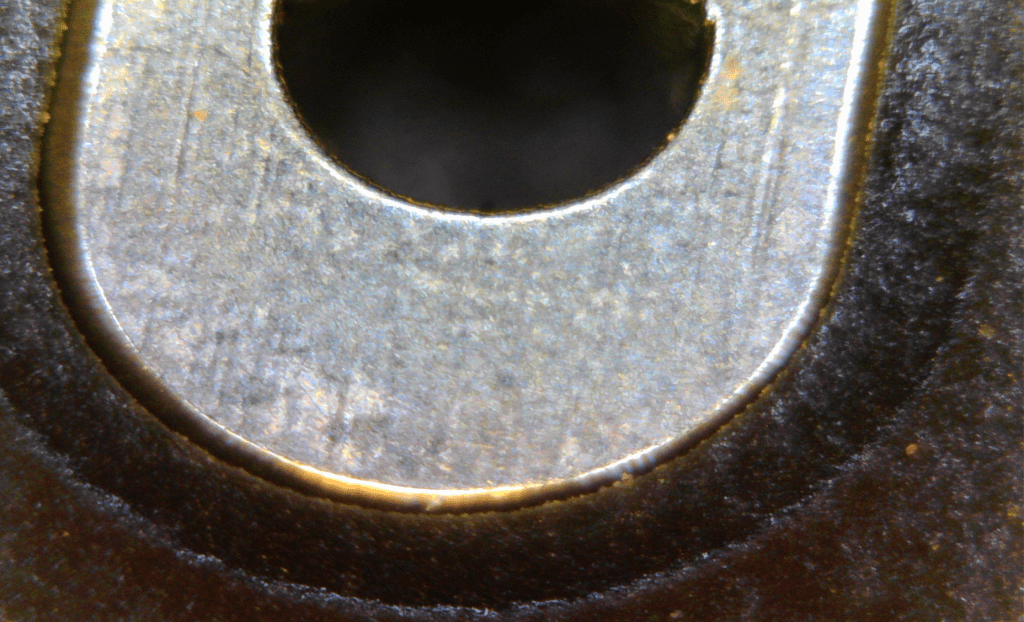

Mask is so great. And look at these E-Tested eyes 😀

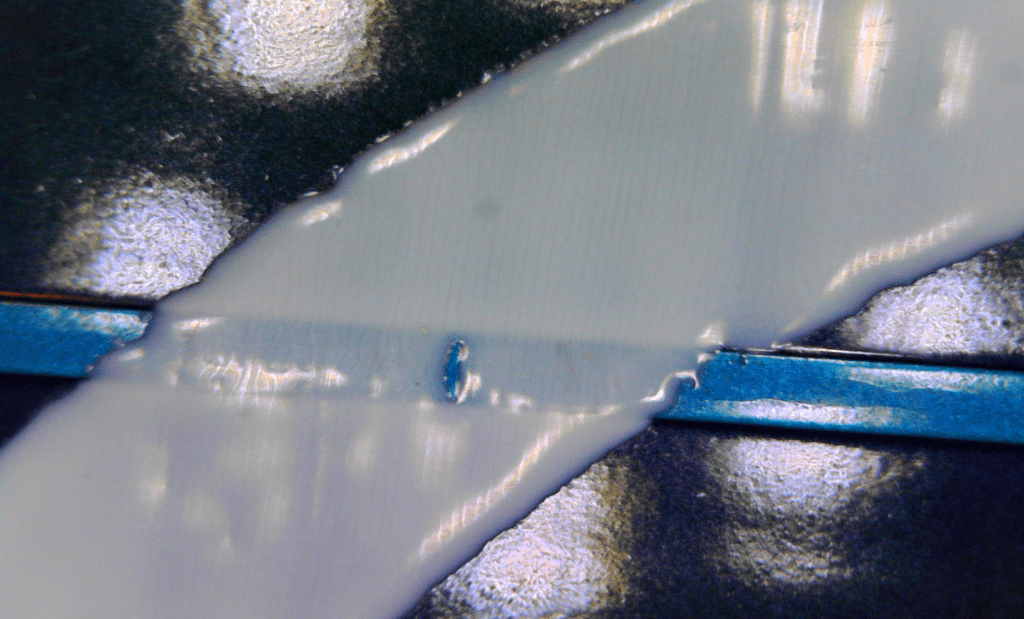

Visble lines on silk.

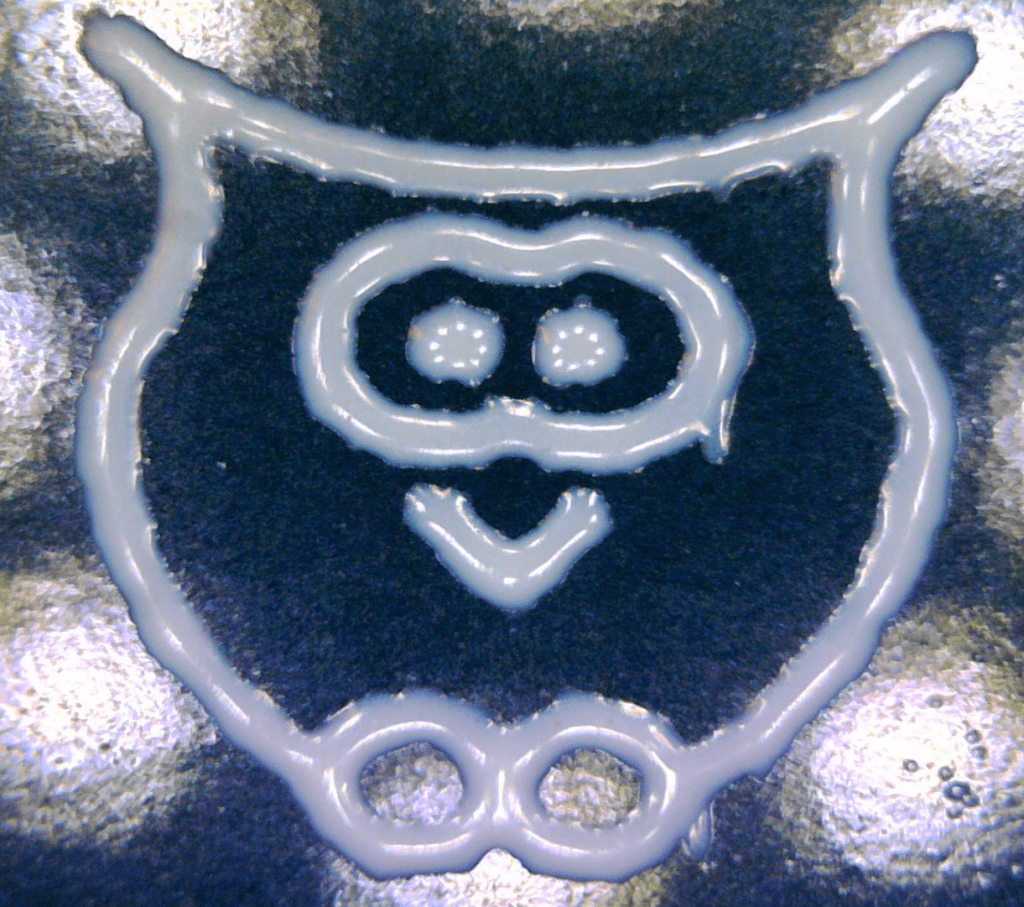

The silkscreen is obviously printed… Big details look a bit sketchy. So, big panels should use a mask (look at this gorgeous shiny text on the black mask!)

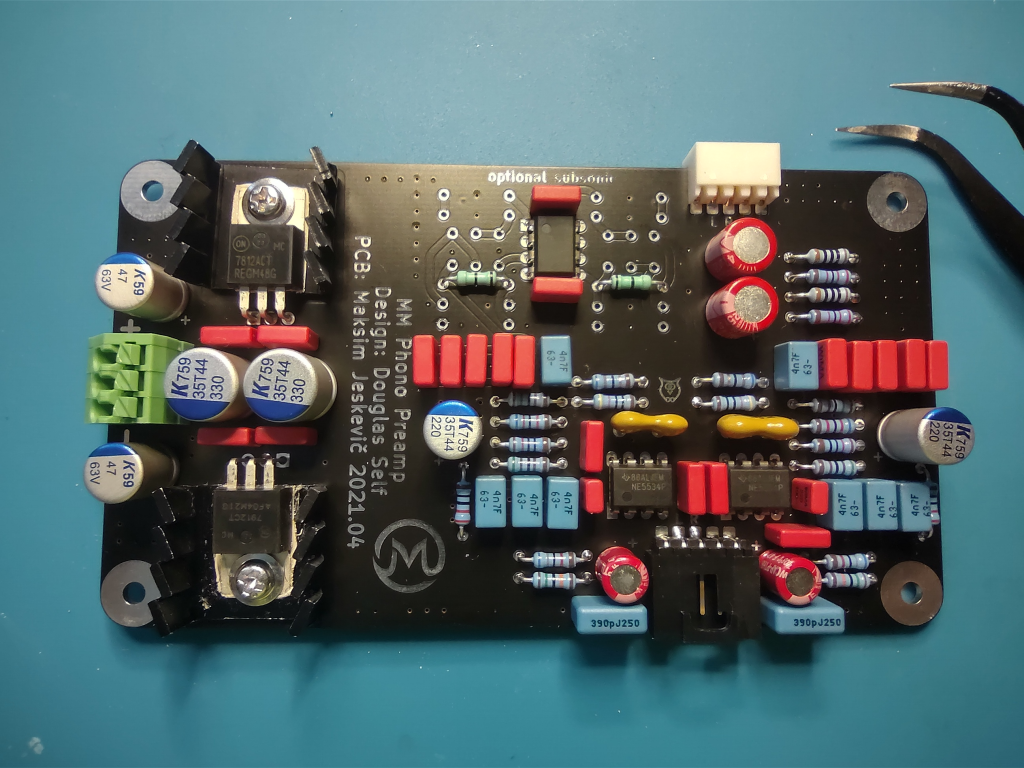

And here is black one with all components placed. Video for better 3D feeling are on the top.

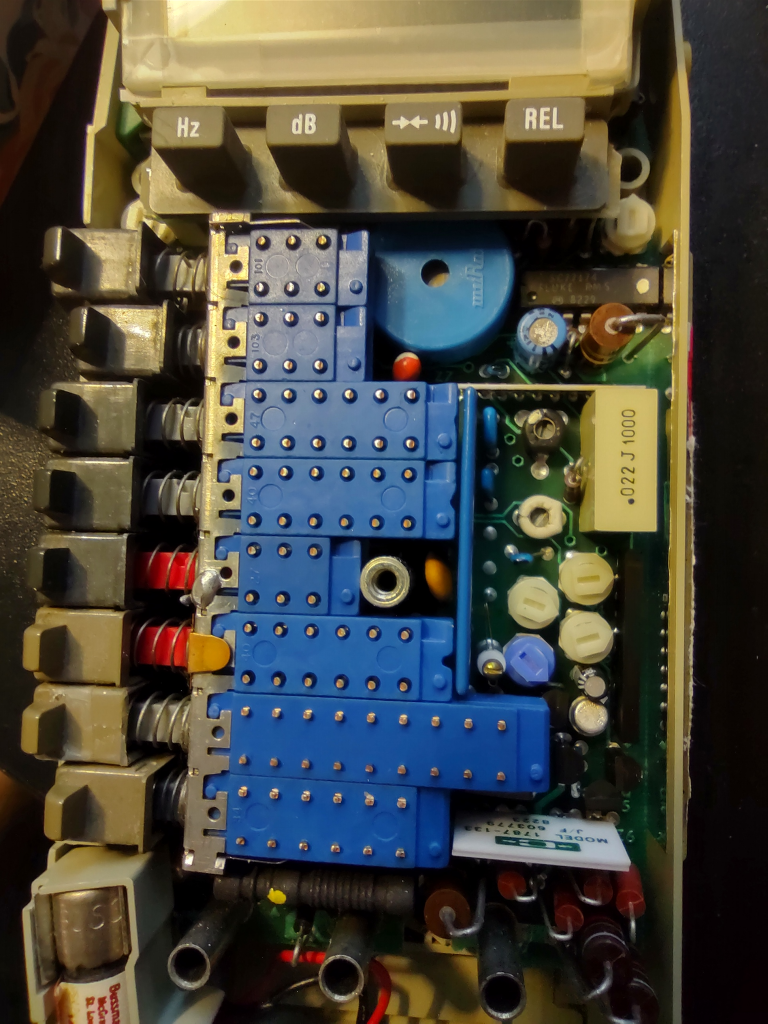

And now some photos from the Fluke…

Electrolitic capacitors look healthy, this is great! (I’ll replace them, but at least they haven’t broken anything)

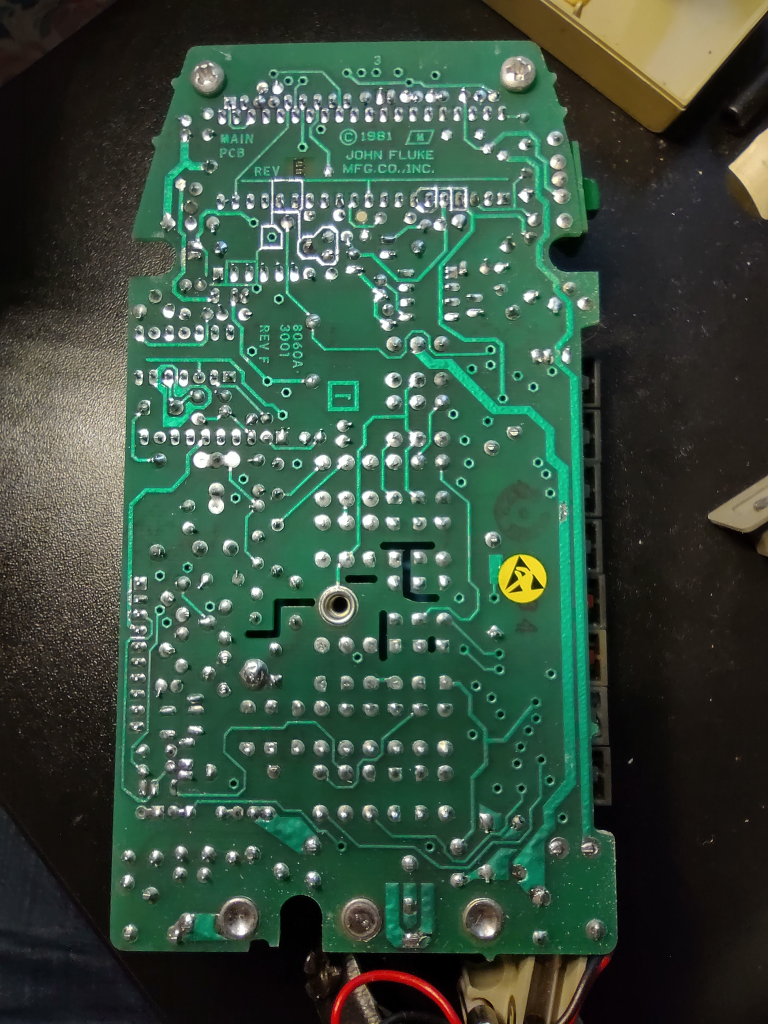

This PCB looks so great!

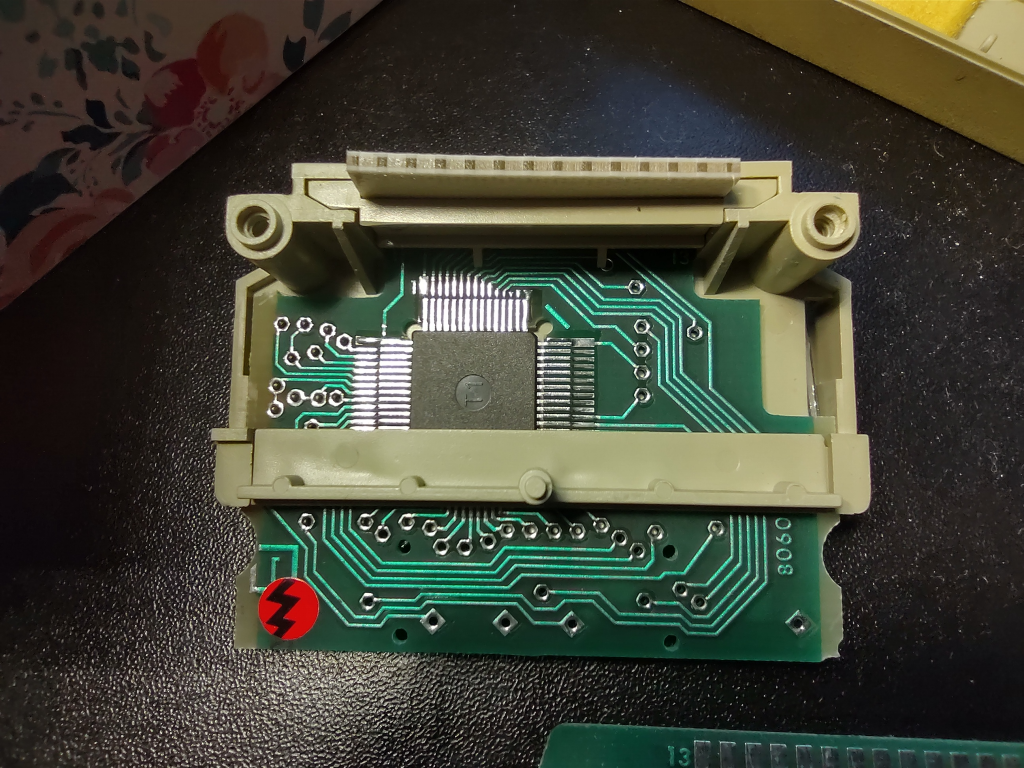

Display and soft-keys controller.

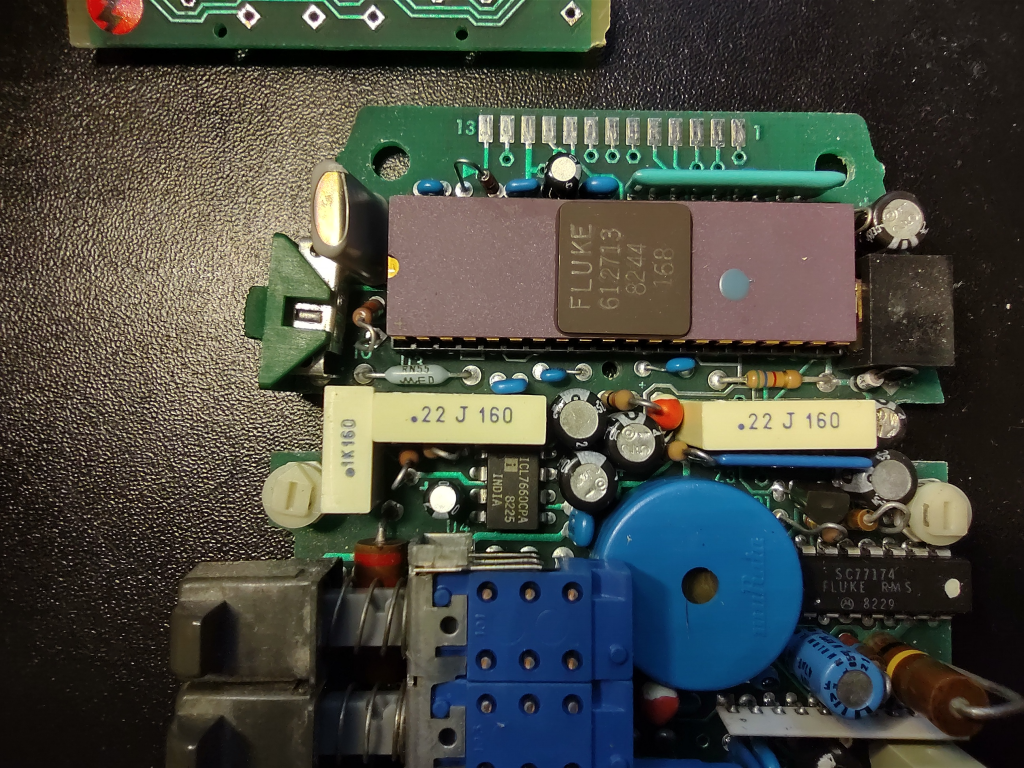

Main processor… So beautiful!

So, this week was really intense! I hope I’ll receive the rest parts for the DC-DC converter next week…
